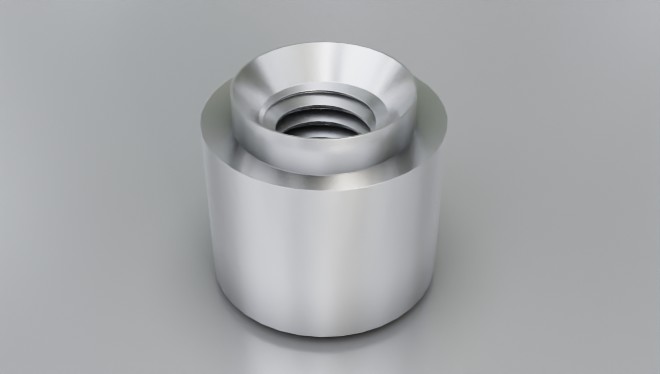

Material Code
Steel/zinc = SZ
303 Stainless steel = SS303
Sheet Thickness Code
0910 = 0.9-1.0 mm
1114 = 1.1-1.4 mm
1517 = 1.5-1.7 mm
1822 = 1.8-2.2 mm
2934 = 2.9-3.4 mm
How to order
Type + Thread + Sheet Thickness Code + Material Code
Example: TRB-M5-1822-SZ or TRB-M8-1517-SS303
| Thread | A +0.00 -0.13 mm |
B ±0.15 mm |
C ±0.13 mm |
Rec. Hole Size +0.05 -0.00 mm |
Please note! |
|||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M3 | 5.54 | 7.92 | 8.61 | 5.54 | Not for 1114 & 1822 & 2934 Sheet | |||||||||||||||||
| M4 | 6.73 | 9.52 | 8.97 | 6.73 | Not for 1822 Sheet | |||||||||||||||||
| M5 | 7.92 | 11.10 | 9.32 | 7.92 | ||||||||||||||||||
| M6 | 9.52 | 12.70 | 10.57 | 9.52 | ||||||||||||||||||
| M8 | 12.70 | 15.87 | 11.89 | 12.70 | Not for 0910 Sheet | |||||||||||||||||
