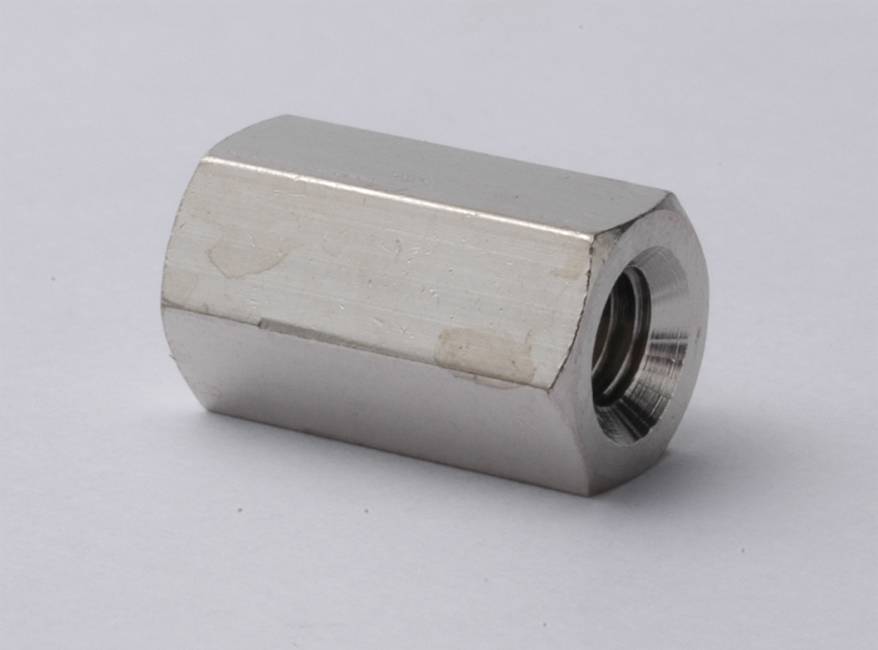

FF

FF

Lengths

5-8-10-12-15-18-20-25-30-35-40-45-50-55-60-70-80

Material Code

B = brass nickel plated
S = mild steel zinc plated
SS = stainless steel

How to order

Type + Thread + Outer Dia. + Length + Material Code
Example: FF-M3-50-8-B or FF-M4-70-6-SS

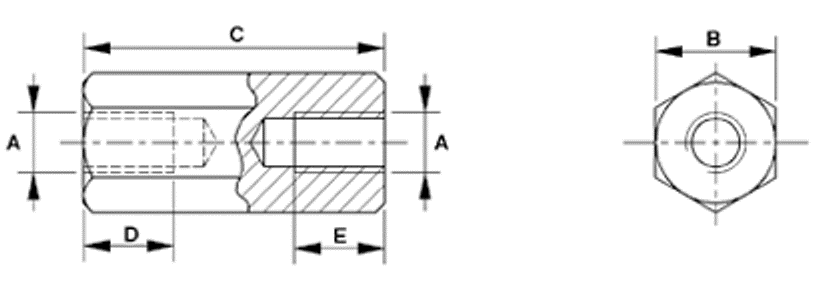

A
Thread		 B
Outer Dia.
mm		 C
Length
mm

D / E
Inside Thread
mm

  Please note!
Min. Max D E
M2 4.0 5 20 Through Through Can be customized
M2 4.0 25 45 8 8 Can be customized
M2.5 5.0 5 20 Through Through Can be customized
M2.5 5.0 25 45 10 10 Can be customized
M3 5.0 5 20 Through Through Can be customized
M3 5.0 25 80 10 10 Can be customized
M3 5.5 5 20 Through Through Can be customized
M3 5.5 25 80 10 10 Can be customized
M4 7.0 5 20 Through Through Can be customized
M4 7.0 25 80 10 10 Can be customized
M5 8.0 5 20 Through Through Can be customized
M5 8.0 25 80 10 10 Can be customized
M6 10.0 10 25 Through Through Can be customized
M6 10.0 30 80 13 13 Can be customized
M8 13.0 15 30 Through Through Can be customized
M8 13,0 35 80 15 15 Can be customized
